Full-automation cap sealer (CS3-2.1)
This is a cap sealer, which welds TO-CAN package for optical communication devices or sensor devices in an inert gas atmosphere.
The short welding time permits high-precision, stable sealing with a small heat-affected zone.
CCD camera alignment enables the manufacturing of devices with highly precise alignment.
Use
- Parts for optical communications
- Sensor parts
- TO-CAN(TO-56, TO-46, TO-38, TO-5)
Specifications
Dimensions
1,629×1,073×2,151 mm
Welding accuracy
≦±20μm (TO-56 external standard)
Cycle time
≦3.0sec(mechanical alignment)
Features
- The short welding time permits high-precision, stable sealing with a small heat-affected zone.
- It is compatible with TO-CAN of various sizes (including ball lens, aspherical lens, and stems). Special designs are also available upon request.

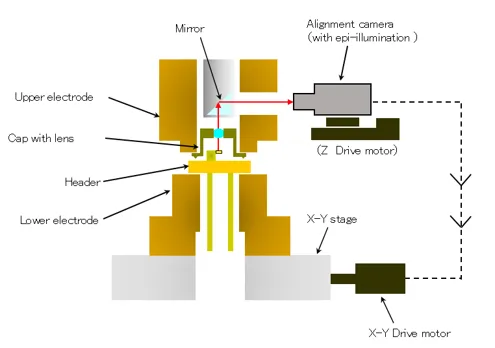

- CCD camera alignment enables the manufacturing of devices with highly precise alignment.
Materials
For detailed specifications, please refer to the following documents
